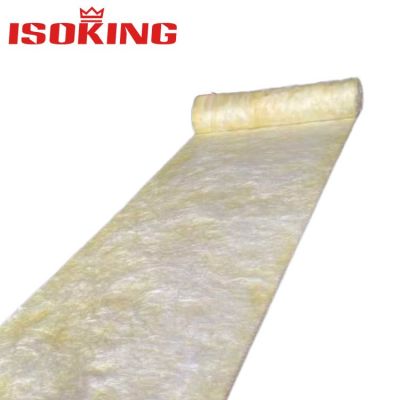

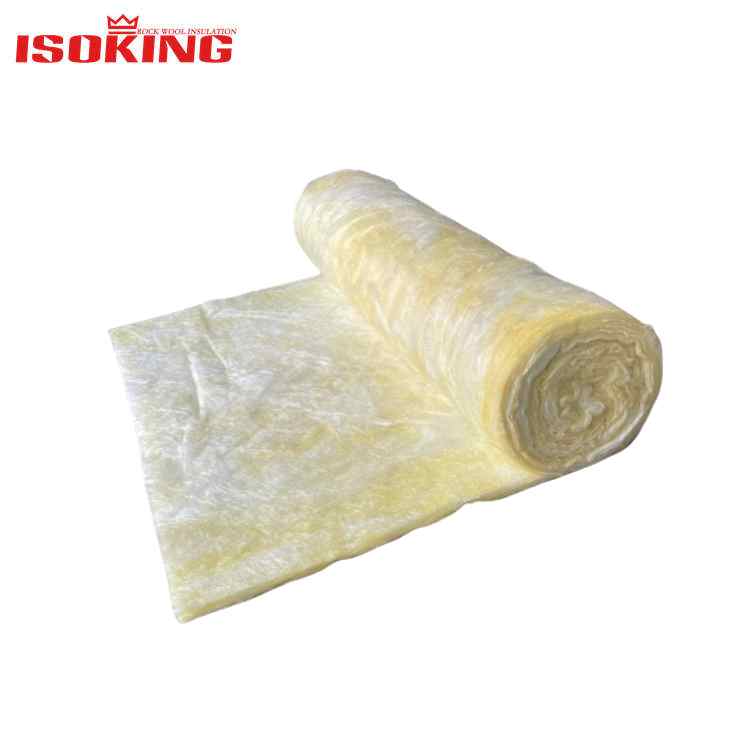

ISOKING GLASS WOOL BLANKETS are manufactured from stable glass fibres bonded with thermosetting resins.They are light in weight, strong resilient and easy to handle. ISOKING range of blankets is available either in plain or faced with Foil-Scrim-Kraft (FSK), kraft paper or white polypropylene facings.
Advantages
·Enhanced thermal comfort
·Prevents condensation
·Superior acoustic performance
·Non-combustible glass wool
·Light weight and easy to handle
ISOKING GLASS WOOL BLANKETS are manufactured from stable glass fibres bonded with thermosetting resins.They are light in weight, strong resilient and easy to handle. ISOKING range of blankets is available either in plain or faced with Foil-Scrim-Kraft (FSK), kraft paper or white polypropylene facings.

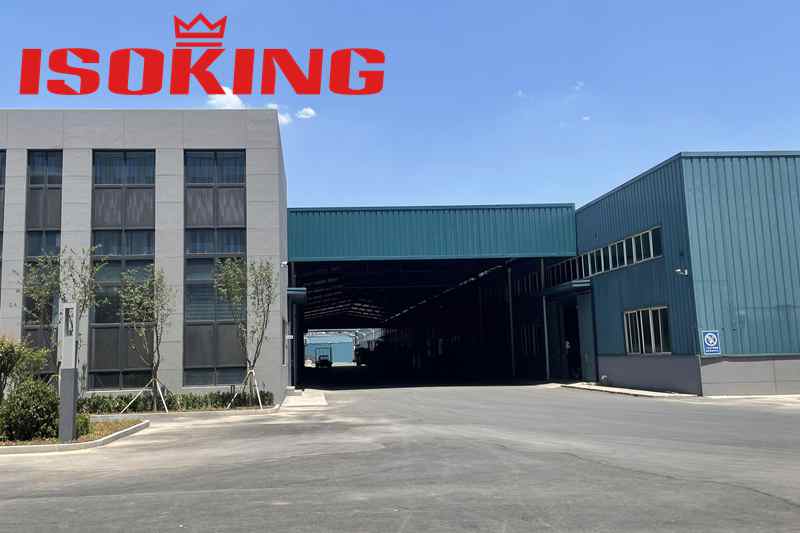

IKING GROUP is professional manufacturer of Glass wool and Rock wool Insulation in china. Now we totally have 8 producing lines of Glass Wool and 2 producing lines for Rock wool. The Production capacity are 10000tons per month. Our own brand ISOKING is very popular on market Now we are a leading supplier of glass wool insulation in China.
Specification Range
| Item | Unit | Index |
| Density | kg/m3 | 10-48 |
| Thickness | m | 25-180 |
| Width | mm | 1200 |
| Length | m | 5-30 |
Property of ISOKING Glass Wool Insulation
| Description | Value | Standard |
| Max Service Temperature | 450˚C Outer foil temperature limited to 100˚C | ASTM C411 |
| Combustibility | Non-combustible | ASTM E84 |
| Rigidity | Soft | ASTM C1101 |
| Shot content | Free of shot | ASTM C612 |
| Fungi Growth | Does not encourage fungi growth | ASTM C665 |
| Thermal conductibility | < 0.044 | ASTM C518 |
| Moisture absorption | less than 0.2% by volume | ASTM C533 |
| Facing materials | Alu Foil, white polypropylene kraft paper | Fire Froofing |
NRC Value
| Density | Thickness | Sound Frequency(Hz) | ||||||
| (kg/m3) | (mm) | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 10 | 50 | 0.46 | 0.62 | 0.88 | 0.87 | 0.86 | 0.97 | 0.8 |
| 12 | 50 | 0.42 | 0.63 | 0.92 | 0.91 | 0.88 | 0.97 | 0.8 |
| 16 | 50 | 0.39 | 0.68 | 1.06 | 1.03 | 0.91 | 0.98 | 0.91 |
| 24 | 50 | 0.36 | 0.64 | 1.04 | 1.06 | 1.05 | 1.1 | 0.95 |
| 32 | 50 | 0.38 | 0.72 | 1.11 | 1.07 | 1.04 | 1.07 | 1 |
Production process of ISOKING glass wool
·Material
The basic raw materials are inorganic compositions.such as silicon dioxide, aluminum oxide, calcium oxide, magnesium oxide, sodium oxide, boron oxide and P2 O5.
·Fiberizing
The melted glass goes into a channel leading to the fiberizing area. When flowing so, the glass reaches the required temperature to be converted into fibers. Fiberizing is made according original HL process which combines a centrifugal drawing of the glass through a rotating device drilled with holes, called spinner, and a fiber attenuation thanks to high temperature gas jet streams.
·Forming
Mat forming is realized within a forming section and some specifics tools designed to rearrange fibers in the mat. The structure and density of the products are adapted in each case, depending of the requirement of their final use.
Please feel free to contact us if you have any needs!
