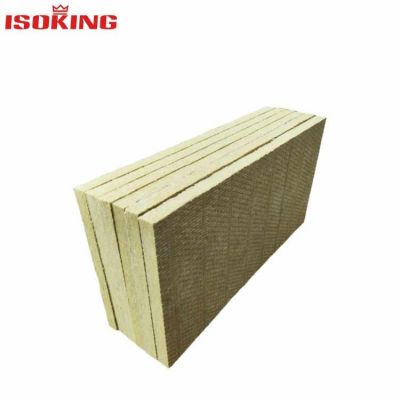

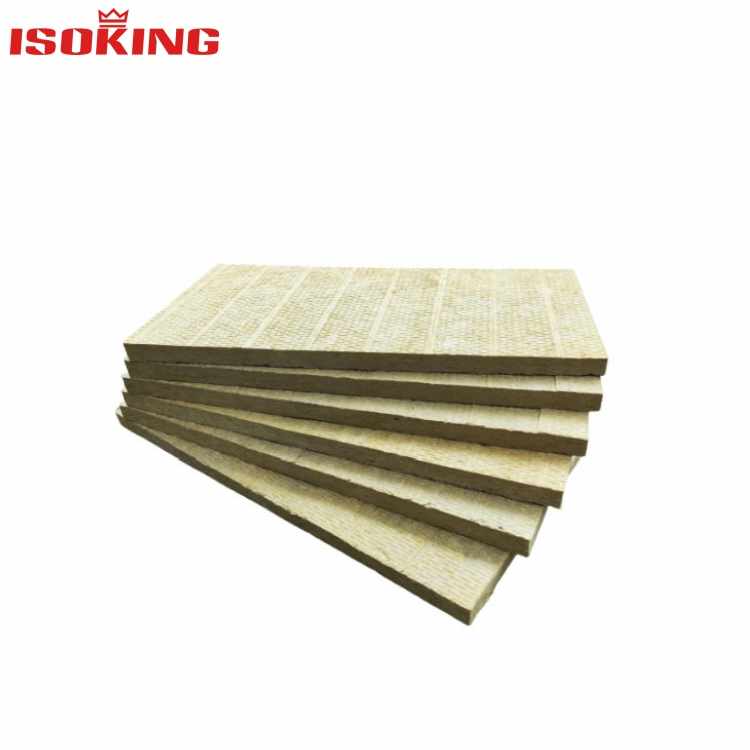

75mm Thick Basalt Wool Board (100~120kg/m³)
This premium mineral-wool-china product, 75mm thick Basalt Wool Board, is professionally designed for engineering scenarios that demand single-layer, high-thickness thermal insulation and high-grade soundproofing performance. Manufactured with high-density pure basalt fiber with a typical density of 100~120kg/m³, this reliable mineral-wool-china insulation material greatly weakens heat conduction and sound transmission efficiency, while retaining stable A1 non-combustible fire resistance, meeting strict building thermal and acoustic insulation standards.
Standard Size Specifications
|
Parameters
|
Value / Range
|
|
Length (mm)
|
1000 / 1200
|
|
Width (mm)
|
600
|
|
Thickness (mm)
|
75 (Tolerance ±2mm)
|
|
Density (kg/m³)
|
100~120 (Recommended value 110)
|
|
Thermal Conductivity (W/(m·K))
|
≤0.035
|
|
Fire Resistance Rating
|
A1 (Non-combustible)
|
|
Water Repellency (%)
|
≥99
|
|
Compressive Strength (kPa)
|
≥50 (10% relative deformation)
|
Note: This high-performance mineral-wool-china Basalt Wool Board supports aluminum foil or fiberglass cloth facing customization, and non-standard custom lengths are available to fit diverse project requirements.
Product Features
Single-layer High Insulation Thickness: The 75mm thick Basalt Wool Board, a core mineral-wool-china insulation product, fully meets the exterior wall thermal conductivity requirement of K≤0.25 W/(m²·K) for extremely cold regions including Northeast China and Russia. It eliminates the need for double-layer board stacking, effectively reducing cold bridge phenomena at board joints and improving the overall thermal insulation integrity of the building envelope.
Superior Airborne Sound Insulation: Benefiting from the increased thickness and dense fiber structure of this mineral-wool-china board, it gives full play to the mass law of sound insulation. When filled in light steel keel partition walls, the 75mm Basalt Wool Board achieves a weighted sound insulation Rw of up to 55dB, efficiently blocking mid-to-high frequency noise such as neighbor conversations and TV sounds, creating a quiet indoor environment.
Product Advantages
Double Installation Speed: Compared with the traditional solution of laying two layers of 37mm or 38mm insulation boards, the 75mm integrated Basalt Wool Board only requires one-time laying and anchoring construction. This optimized mineral-wool-china application method cuts labor workload and auxiliary material costs by about 30% and shortens the overall construction period by half, greatly improving project delivery efficiency.
Stronger Thermal Stability: The thickened structure of the Basalt Wool Board forms a gentle internal temperature gradient. Under cyclic temperature changes ranging from -30℃ to 70℃, the internal structural stress of this mineral-wool-china insulation board is effectively controlled, avoiding common problems like delamination and warping. It features outstanding environmental adaptability and is extremely suitable for long-term stable operation of building exterior wall insulation systems.
