ISOKING High-Density Mineral Wool Pipe Insulation is engineered from natural basalt mineral to provide superior thermal conservation, Class A1 fire protection, and noise reduction for industrial piping networks. Features a pre-formed single-split design for fast, snap-on installation over steam lines, HVAC, oil & gas, and power plant pipelines.
Contact us today for free technical specs, complimentary samples, and competitive factory quotes!

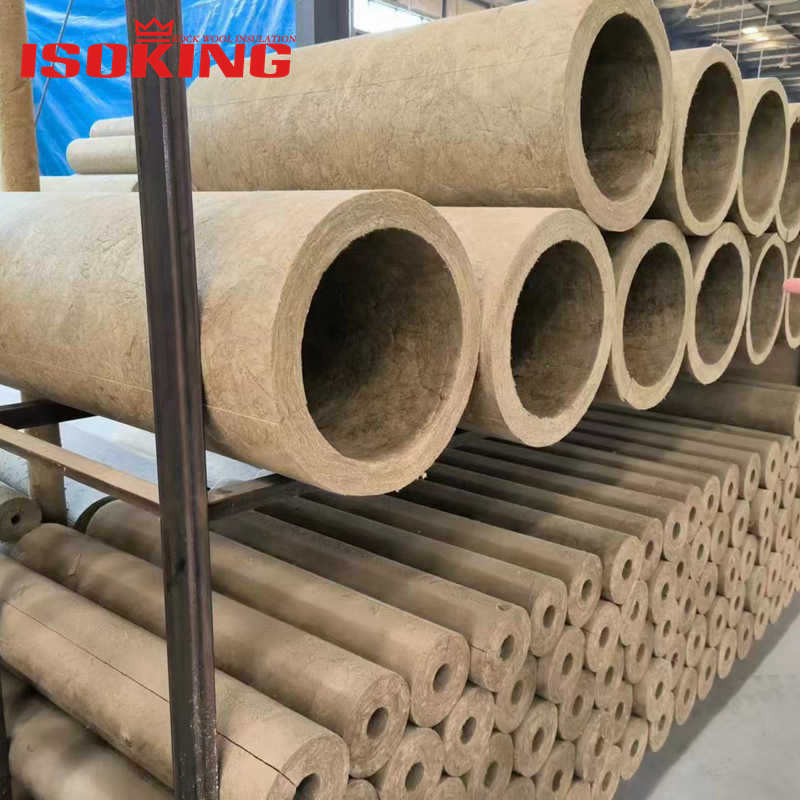

ISOKING high-density mineral wool pipe insulation is engineered specifically for thermal conservation, fire protection, and acoustic insulation in high-temperature industrial piping networks. Manufactured from premium natural basalt mineral, our pre-formed mineral wool pipe sections offer exceptional structural rigidity, low thermal conductivity, and Class A1 non-combustibility.
Whether you are insulating high-pressure steam lines, oil & gas transportation pipelines, power plant boilers, or commercial HVAC systems, our thermal pipe insulation guarantees maximum energy efficiency and operational safety under harsh conditions.
Premium fireproof pipe insulation capable of withstanding continuous operating temperatures up to 650°C (1200°F) without melting, deformation, or toxic smoke release.
Extremely low thermal conductivity (≤ 0.036 W/m·K) significantly reduces heat loss, cuts operating costs, and prevents outer surface condensation.

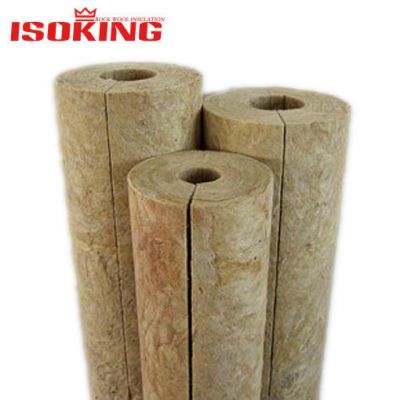

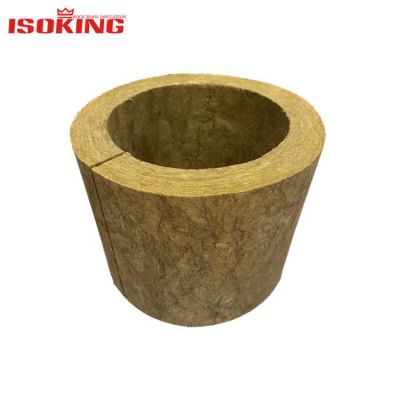

Features a precise single-split longitudinal seam for rapid snap-on fit over existing pipes, cutting labor hours and installation costs.

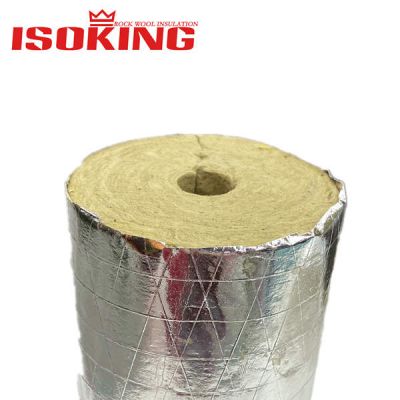

Available with hydrophobic (water-repellent) additives and Aluminum Foil (FSK) facings to protect steel pipes against Corrosion Under Insulation (CUI).
High-density fibrous structure effectively suppresses fluid flow noise and mechanical vibrations along industrial pipelines.
| Property | Specification / Standard |
|---|---|
| Base Material | High-Quality Basalt Mineral Wool |
| Density Range | 80 - 150 kg/m³ (5 - 9.3 lbs/ft³) |
| Inner Diameter (ID) | 21 mm - 610 mm (1/2" to 24") / Custom Sizes Available |
| Section Thickness | 30 mm - 150 mm (1.18" to 5.9") |
| Standard Length | 1,000 mm (39.37") per section |
| Max Service Temp | Up to 650°C (1200°F) |
| Thermal Conductivity | ≤ 0.036 W/(m·K) at 25°C |
| Fire Rating | Euroclass A1 / ASTM E84 Class 1 |
| Facing Options | Bare, Aluminum Foil (FSK), Glass Fiber Cloth |
Our industrial pipe insulation solutions are extensively deployed across high-demand sectors:
High-temperature steam pipelines, crude oil lines, and process fluid transfer.
High-pressure steam piping, boiler feed systems, and turbine exhaust lines.
Hot water supply, chilled water pipes (with FSK facing), and district heating networks.
Engine room exhaust manifolds and fire-rated bulkhead pipe penetrations.
Tailored inner diameters, wall thicknesses, and pre-applied facings based on your exact engineering blueprints.
Every production batch undergoes rigorous density, thermal conductivity, and dimensional tolerance inspections (ISO 9001 certified).
Packed in reinforced corrugated cartons or moisture-proof shrink-wrapped pallets designed to survive long-distance ocean shipping.
Get instant wholesale pricing, downloadable Technical Data Sheets (TDS), and complimentary product samples.
